Канада:

Asian Phoenix Resources Ltd., Canada
2-416 Dallas Road Victoria, BC V8V 1A9 — http://www.powerpal.com/

1. PowerPal Low Head
Models: MHG-200LH, MHG-500LH and MHG-1000LH
Power outputs: 200W — 1000W
http://www.powerpal.com/lowheadmanual.pdf

2. PowerPal High Head
Models: MHG-200HH and MHG-500HH
Power outputs: 200W — 500W
http://www.powerpal.com/highHead.pdf

3.PowerPal T1 and T2 Turgo
Models MGH-T1 and MHG-T2, Power outputs: 660W — 2kW
(only available in 220v and 50hz)
http://www.powerpal.com/T1manual.pdf — Т1
http://www.powerpal.com/T2Manual.pdf — Т2

4. PowerPal T5 Turgo
Model: MHG-T5, Power Outputs: 2kW — 4.5kW
(Available only in 220v and 50hz)
http://www.powerpal.com/T-5manual.pdf

5. PowerPal T8 and T16 Turgo
Model MHG-T8 and MHG-T16
Turbine Outputs 5.9kW to 20kW
Power Outputs: 4.7kW-16kW
http://www.powerpal.com/t8andt16.html



Великобритания:



Nautilus Water Turbine

Turbine Services (Wind/Hydro) Ltd.
Cockermouth, England, United Kingdom
CA139TL, Armaside Farm, Lorton
http://1514.uk.all-biz.info

Канада:

Мини — ГЭС — гидрогенератор Hydro Induction Power
http://www.hipowerhydro.com/

Мини — ГЭС — Гидрогенератор — Stream Engine и LH1000 «LOW HEAD»
http://www.microhydropower.com/





Канада:

2. PowerPal High Head
Models: MHG-200HH and MHG-500HH
Power outputs: 200W — 500W
http://www.powerpal.com/highHead.pdf



Канада:

3.PowerPal T1 and T2 Turgo
Models MGH-T1 and MHG-T2, Power outputs: 660W — 2kW
(only available in 220v and 50hz)
http://www.powerpal.com/T1manual.pdf — Т1

http://www.powerpal.com/T2Manual.pdf — Т2

4. PowerPal T5 Turgo
Model: MHG-T5, Power Outputs: 2kW — 4.5kW
(Available only in 220v and 50hz)
http://www.powerpal.com/T-5manual.pdf





КИТАЙ:





Micro Hydro Turbine

Our Micro hydro system ranging from 200W to 100KW, with Head 2 metres to 200 metres, Flow is ranging from 0.003 cubic meter per second to10 cubic metre per second. Our axial flow and pelton type can meet lots of condition of our clients local situation. More detail about our products, give us your enquiry as soon as possible.

Model NO.: HSH Micro Axial Flow hydro turbine system
Standard: CE
Company: HS Dynamic Energy Co., Ltd. (Guangdong, China)


Super Mini Hydrogen Generator :)

Technical parameters
Max operating Pressure: 1.3Mpa
Work range: 0 to 1.3Mpa
Test pressure: 1.5Mpa
Temperature range: 0 to 90Deg C
Nominal flow: 240—450L/Min
Output voltage: 6.0+ 0.3VDC at 2. L/Min
Material polyamide
Pipe size: 14mm
Seals: EPDM
Terminals Plug in terminals
INstallation any direction
Standard: ISO9001: 2000
Company: Haiven Electrical Co., Ltd. (Henan, China)
http://www.made-in-china.com/showroom/haiven/product

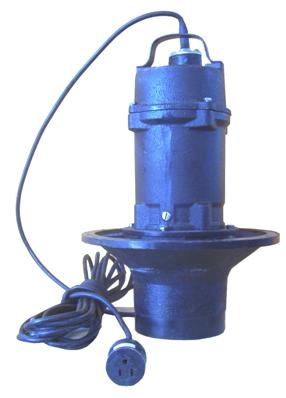

Hydro generator, Underwater 100 micro
http://1265.uk.all-biz.info/cat.php?oid=25

подробнее — http://guns.allzip.org/topic/151/603352.html


Hydro generator, Underwater 100 micro
Submerged generator for fast flow zero head streams
The UW100 is a submerged generator designed for charging 12/24-volt battery systems from fast flowing zero head streams. Strictly speaking it is a picohydro generator ideally suited to difficult situations such as: Work Boat, Seismic Survey Vessel, Catamaran, Navigation Buoy, Water Supply Monitoring, Remote Homes, Aquaculture.
Previously known as the Aquair UW (which created a lot of confusion with the Aquair) this outstanding submerged in-water generator is equally suited for use at sea or in fast flowing rivers, mountain streams & water pipe systems. It can be used in locations where bank layouts dictate that it is impossible to dam a flow to create a head, or where the water is flowing under ice, or in high speed towed applications such as streamers and racing catamarans. The cult status of the UW100 is because it offers the opportunity to generate up to 2.4kWh per day from any 400mm deep (15″) fast flowing stream. When the stream flows at 8-knots (7mph; 15kph) the UW100 will produce 8 amps continuously, and when the stream flows at 6-knots (5mph; 10kph) it will still produce 1.5kWh per day. And remember that a stream can be diverted into a narrow culvert to increase flow rates. Starts charging at flows below 1m/sec (2 knots) — generates up to 8amps at 12v. Proven to depth of 10m.
All water joints (mechanical & electrical) are double sealed.
The oil filled housing has a pressure expansion chamber to allow operation at intermediary depths & in all temperatures.



КИТАЙ:



Micro Hydroelectric Generator

We manufacture 4KW-10KW Low Head Micro-hydro Turbine Generator.

Mini Tubular Hydro Turbine

Main Specifications
Turbine Remarks
Type GD-LZ-20-6KW Horizontal Tubular Turbine
Reted Head 7m
Rated Flow 156 l/s
Power 6 KW
Efficiency 60%

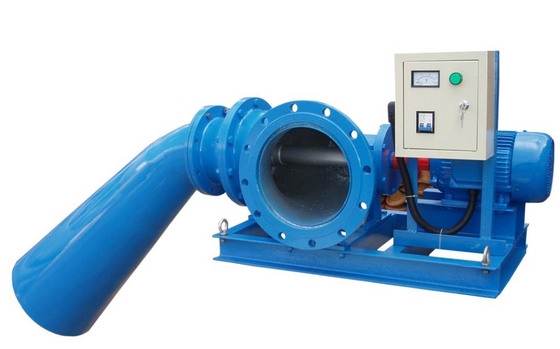

Sell Axial Flow Propeller Mini Hydro Turbine generator

Main Specifications
Turbine Remarks
Type ZD1.8-0.3DCT4-Z Turgo Turbine
Reted Head 1.8m
Rated Flow 40 l/s
Power 0.3 KW
Efficiency 60%
Generator Remarks

High Head Micro-hydro Turbine Generator

High Head Micro-hydro Turbine Generator. The power range from 200W-30KW.

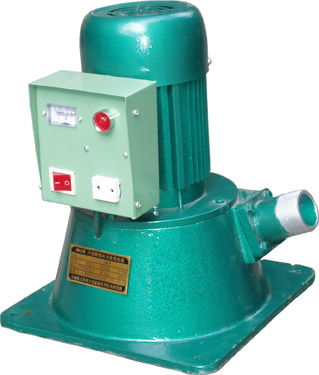

Mini Hydro Generator

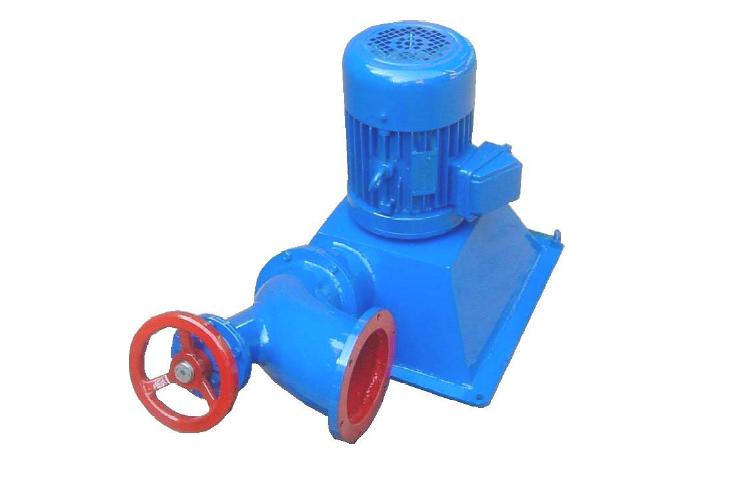

Model QS-LZ-12-0.55KW
Diameter of Runner 120mm
Nominal Power 0.55KW
Output Voltage 230V AC
Frequency 50Hz
Phases Single-phase
Generator Style Rear Earth Permanent Magnet
Synchronous Generator
Generator Mode Vertical
Rotational Speed 1500RPM

DLLD Co.,Ltd
Membership Type : Free member
Registration Date : 2009-12-20
Country/Region : China
Address : No.17-3-105 of Hua Long Ren Jia, Yin He avenue Kunming Yunnan, China
Phone : 86-0871-2413321
Fax : 86-0871-5819519
Contact : Totti
http://www.ec21.com/offer_detail/Sell_Micro_Hydro_Generator_Micro—8635192.html

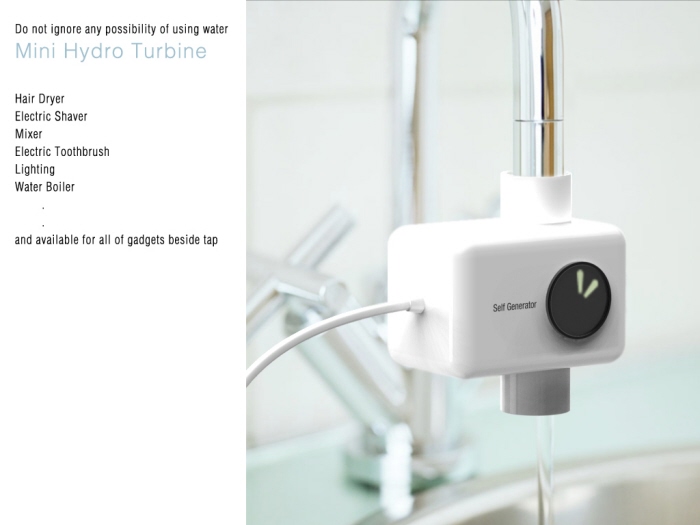

Mini Hydro Turbine Concept Turns Drippy Faucet Into Energy Source

Дизайнер Джин Ву Хан (Jin Woo Han) предложил интересный концепт под названием Self Generator, который в случае коммерческой реализации позволит использовать проточную воду не только в гигиенических целях.
Self Generator — это компактный электрогенератор с турбиной, который одевается на кран. Когда включается вода, начинает генерироваться электричество. Электроэнергия хранится в интегрированном аккумуляторе, а встроенный индикатор показывает уровень его заряда.
Накопленной энергии должно быть вполне достаточно для зарядки портативных гаджетов, электрической зубной щетки или же аккумуляторной электробритвы.








Франция:





Micro turbine hydro-йlectrique а hйlice 220 Volts 300 Watts basses eaux


Profitez de votre chute d’eau ou de votre cours d’eau pour produire vous-mкme votre courant йlectrique en toute autonomie. Hauteur d’eau nйcessaire : 2 а 2,20 mиtresL’йnergie hydraulique provient de l’йcoulement de l’eau sur une pente naturelle. Pour кtre exploitable, il est nйcessaire de concentrer cette йnergie en amйnageant les abords du cours d’eau afin d’avoir un dйbit important et de profiter d’une hauteur d’au moins 2 mиtres.
Puissance nominale : 300 Watts
Puissance maximale : 350 Watts
Tension : 220 Volts sinusoпdale
Type gйnйratrice : Gйnйratrice а aimant permanent
Contrфle de puissance : rйgulateur intйgrй
Frйquence : 50 Hz
Ш de la turbine : 110 mm
Hauteur de chute sous la turbine : 2,20 mиtres
Dйbit d’eau requis : 40 а 45 litres d’eau par seconde
Poids : 25 kg
PRIX : 799,00 _ HT

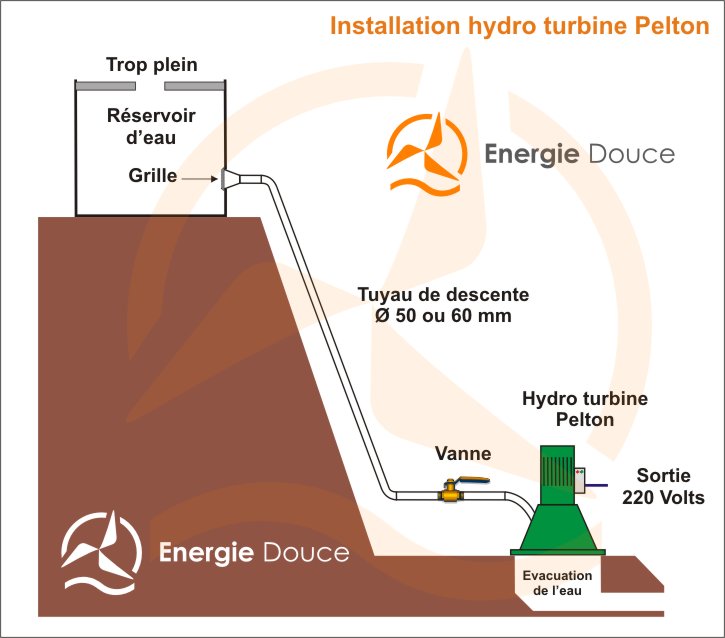

Hydro-turbine йlectrique Pelton 220 Volts 500 Watts


Profitez de votre chute d’eau ou de votre cours d’eau pour produire vous-mкme votre courant йlectrique en toute autonomie. L’йnergie hydraulique provient de l’йcoulement de l’eau sur une pente naturelle. Pour кtre exploitable, il est nйcessaire de concentrer cette йnergie en amйnageant les abords afin d’avoir un dйnivelй important et de profiter d’un dйbit suffisant.
Puissance nominale : 500 Watts
Puissance maxi : 550 Watts
Voltage : 220 Volts — 50 а 60 Hz
Dimension de l’embase : 270 x 270 mm
Ш de l’ouverture sous turbine : 255 mm
Hauteur : 320 mm
Longueur dйbordante de la vanne : 200mm
Ш extйrieur de l’embout (raccord tuyau) : 80 mm
Poids : 25 Kg
PRIX : 995,00 _ HT

Micro turbine hydro-йlectrique а hйlice 220 Volts 1000 Watts basses eaux

Profitez de votre chute d’eau ou de votre cours d’eau pour produire vous-mкme votre courant йlectrique en toute autonomie. Hauteur d’eau nйcessaire : 2,50 а 2,80 mиtres L’йnergie hydraulique provient de l’йcoulement de l’eau sur une pente naturelle. Pour кtre exploitable, il est nйcessaire de concentrer cette йnergie en amйnageant les abords du cours d’eau afin d’avoir un dйbit important et de profiter d’une hauteur d’au moins 2,5 mиtres.
Puissance nominale : 1 000 Watts
Puissance maximale : 1 050 Watts
Tension : 220 Volts sinusoпdale
Type gйnйratrice : Gйnйratrice а aimant permanent
Contrфle de puissance : Rйgulateur intйgrй
Frйquence : 50 Hz
Ш de la turbine : 150 mm
Hauteur de chute sous la turbine : 2,50 mиtres
Dйbit d’eau requis : 70 а 75 litres d’eau par seconde
Poids : 45 kg
PRIX : 1 589,00 _ HT


Hydro-turbine йlectrique Pelton 220 Volts 1500 Watts

Profitez de votre chute d’eau ou de votre cours d’eau pour produire vous-mкme votre courant йlectrique en toute autonomie. L’йnergie hydraulique provient de l’йcoulement de l’eau sur une pente naturelle.Pour кtre exploitable, il est nйcessaire de concentrer cette йnergie en amйnageant les abords afin d’avoir un dйnivelй important et de profiter d’un dйbit suffisant.
Puissance nominale : 1500 Watts
Voltage : 220 Volts — 50 а 60 Hz
Dimension de l’embase : 400 x 400 mm
Ш de l’ouverture sous turbine : 320 mm
Hauteur : 470 mm
Longueur hors vanne : 870 mm
Ш extйrieur de l’embout (raccord tuyau) : 100 mm
Poids : 98 Kg
PRIX : 1 995,00 _ HT

http://www.energiedouce.com/hydro-turbine.html
Vous pouvez nous contacter :
.par tйlйphone au 0892 68 00 58 (0,34 _ TTC / min) du lundi au vendredi de 9h а 18h
.par mail 24h sur 24 et 7 jours sur 7 а l’adresse suivante : contact@energiedouce.com
.par fax 24h sur 24 et 7 jours sur 7 au 01 34 70 99 01
.par courrier а l’adresse suivante : Energiedouce, 1 rue Marcel Paul — 95870 Bezons
.en vous rendant sur place dans nos entrepфts du nord de Paris (situйs au 1 rue Marcel Paul 95870 Bezons) du lundi au vendredi de 9h а 17h
.sur notre site web en remplissant le formulaire affichй ci-dessous

#62MDM 16-03-2010 10:15

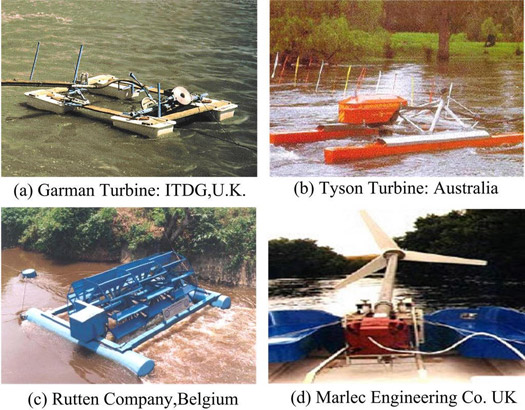

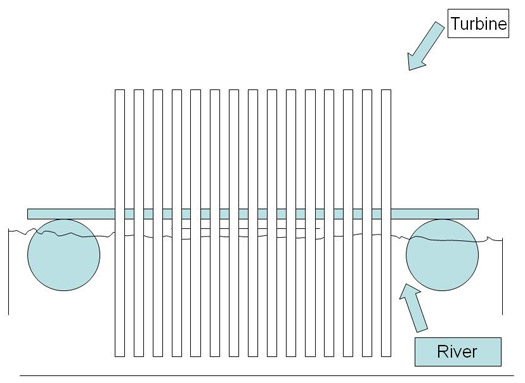

Баржи генераторы гидрокинетической энергии


http://alt-energy.org.ua/2009/08/19/barzhi-generatory-gidrokineticheskoj-energii/





Hydro power generator for Gas Water heater

Environment compliant
Two more inflow holes to reduce the noise
output stable voltate
Pressure-releasing valve
Output Voltage DC 1.0V- DC 1.45V

Модель/Номер продукта: HP-21
Изготовитель: Taiwan
Марка: G.E.











в Канаде коллеги и микро-гэс поставили и базу построили:

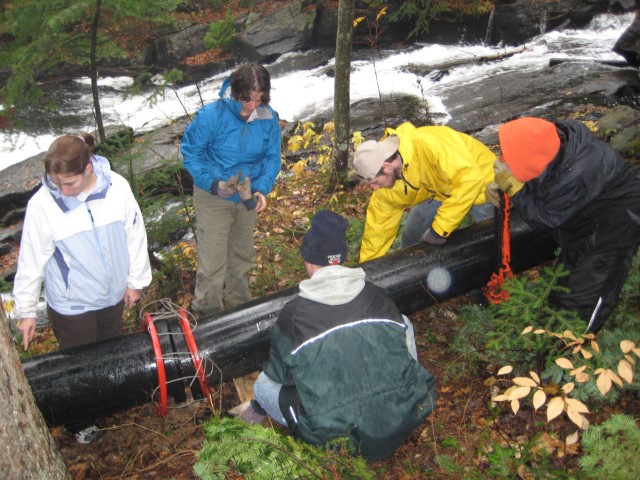

http://www.algonquinecolodge.com/

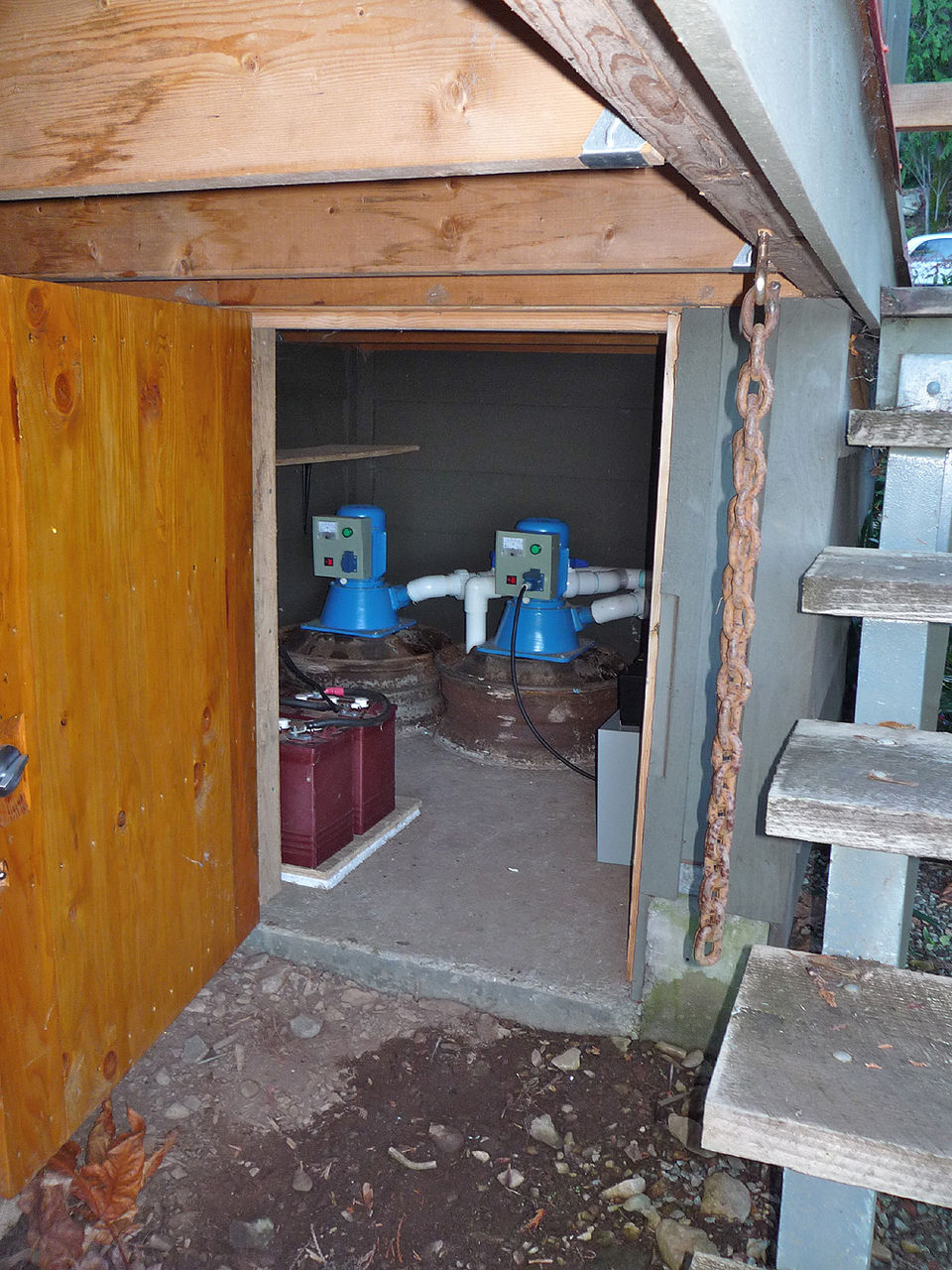

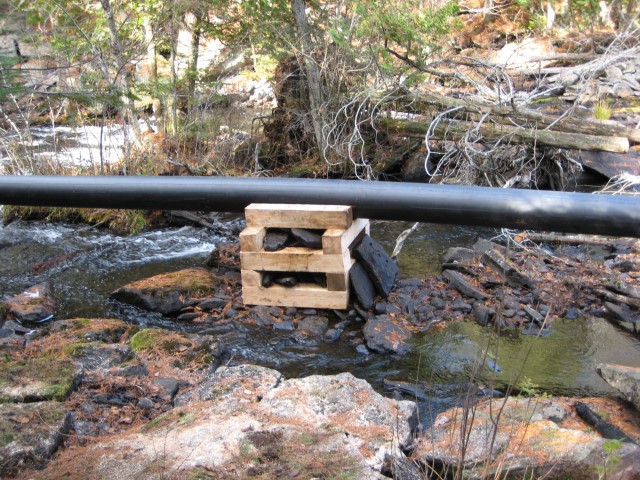

Micro-Hydro Project at Algonquin Eco-Lodge

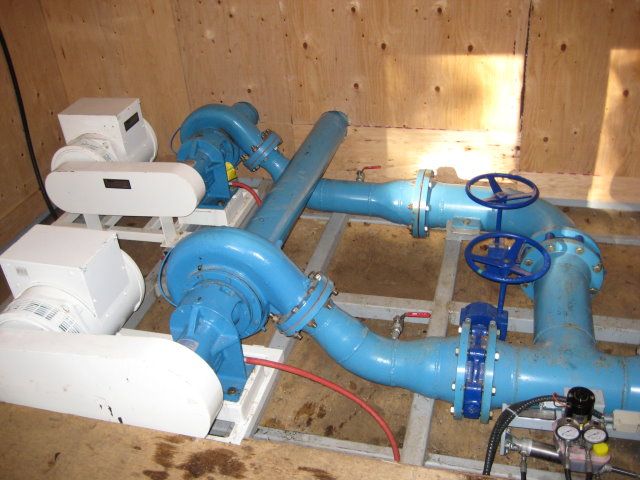

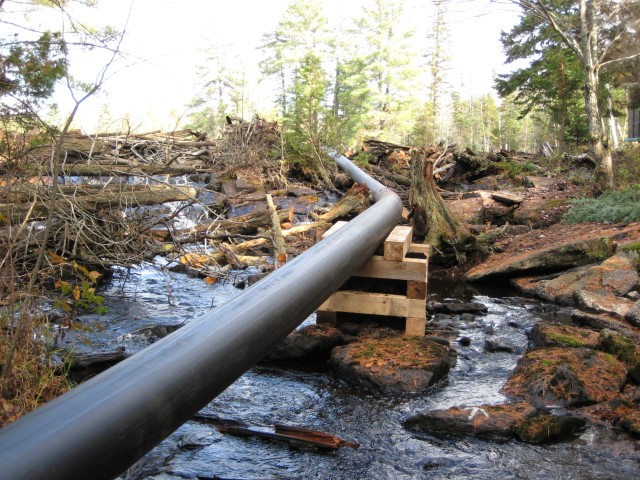

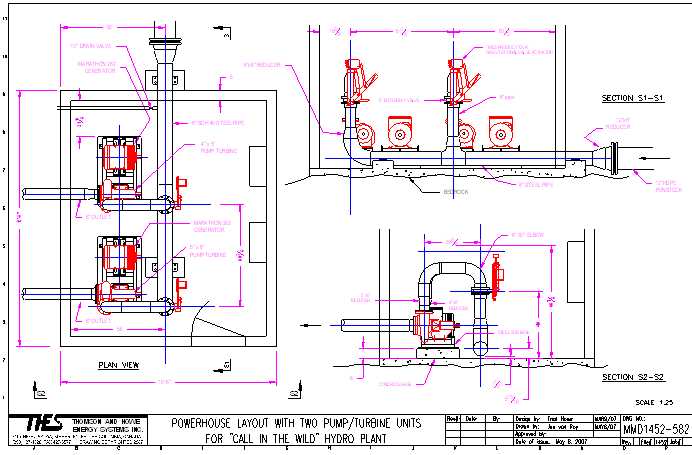

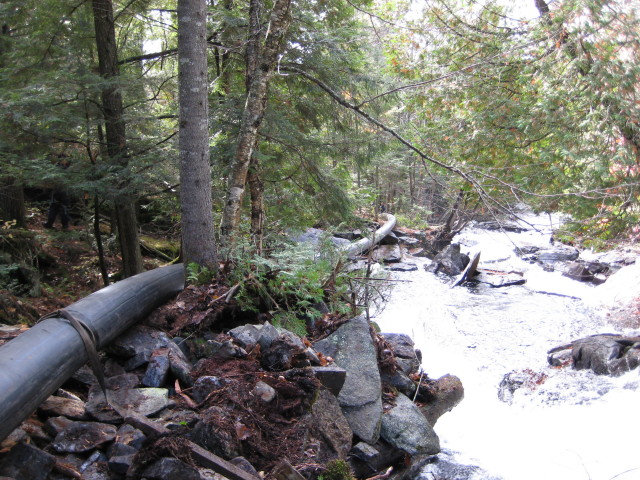

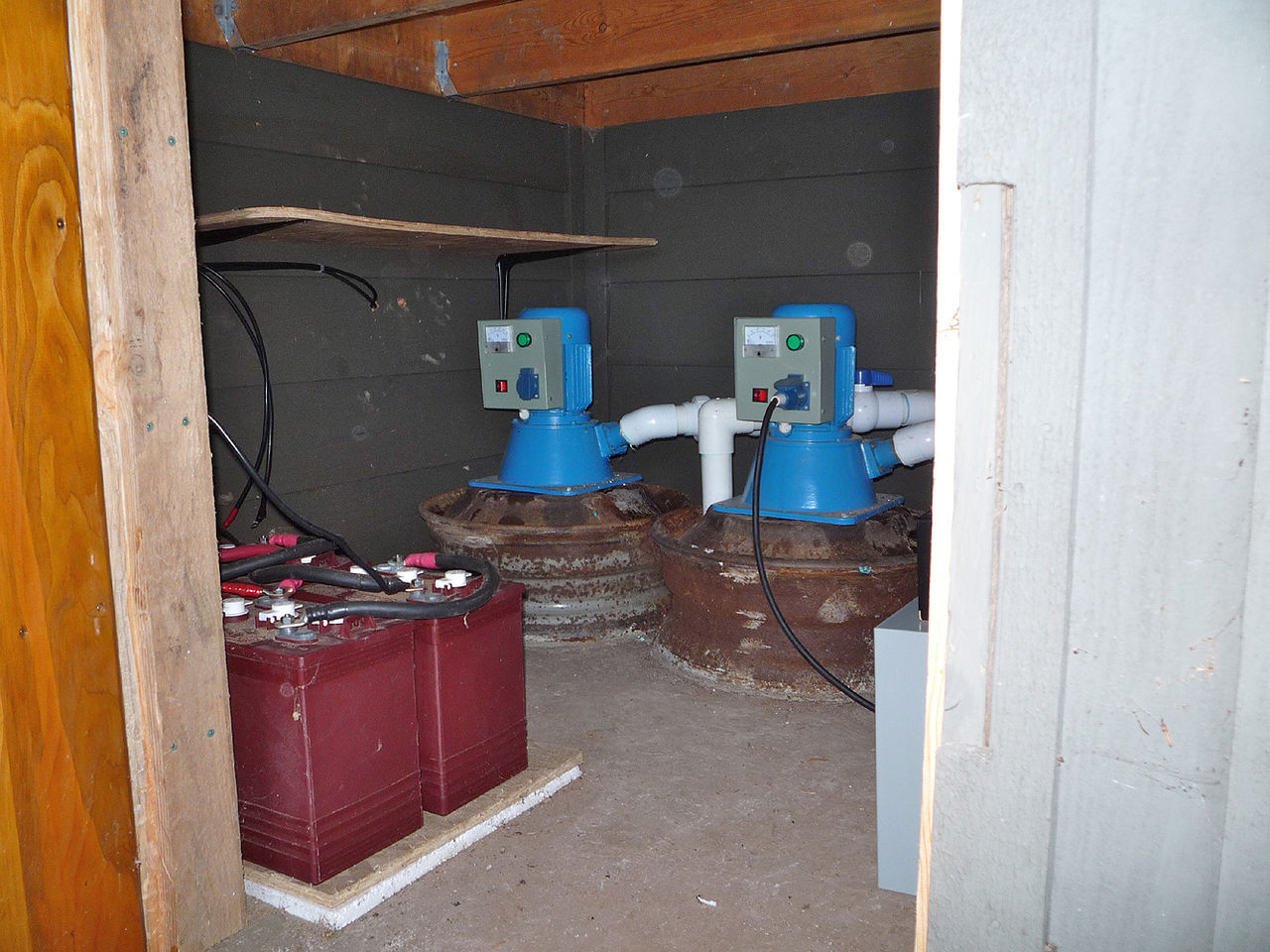

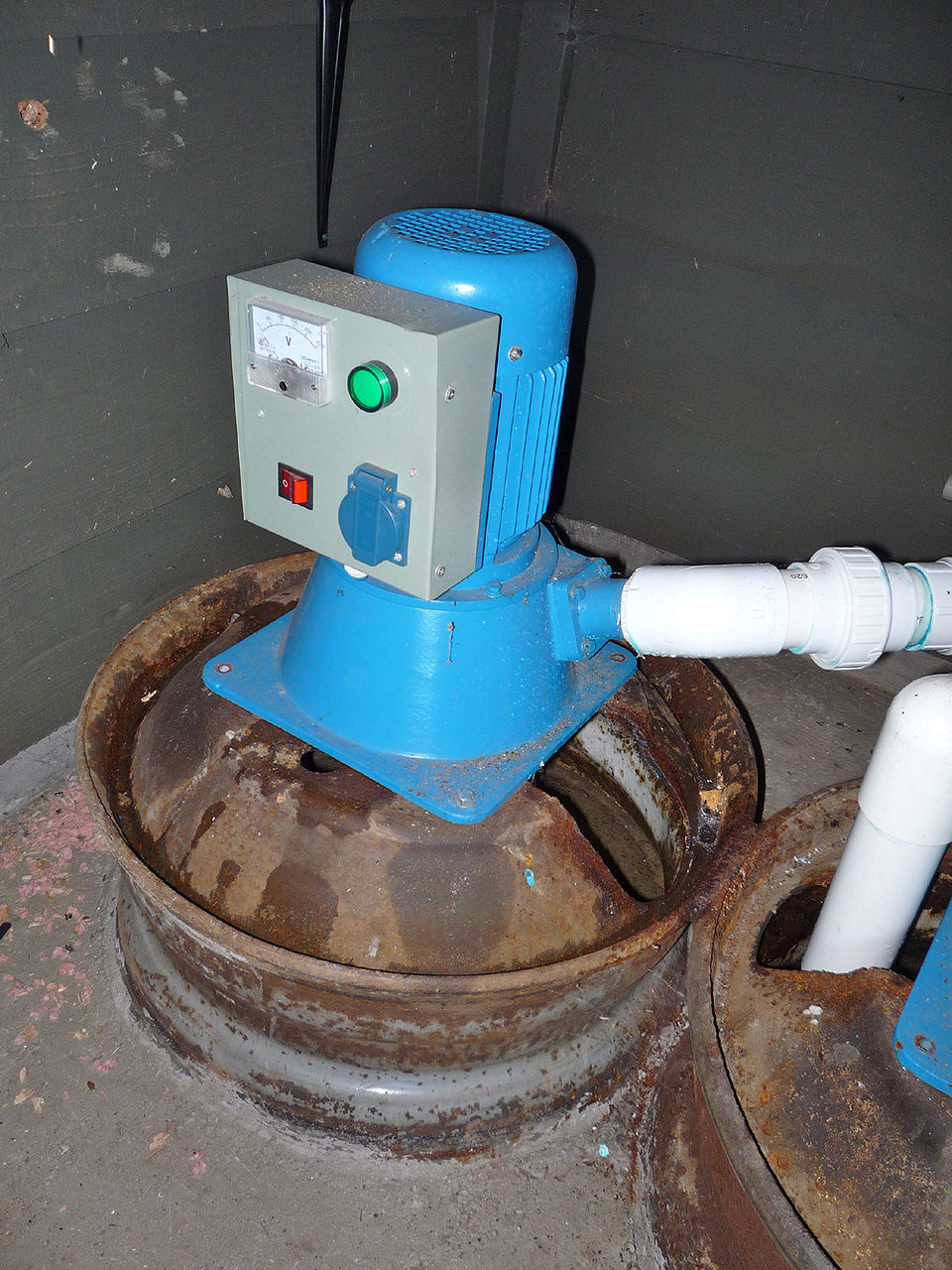

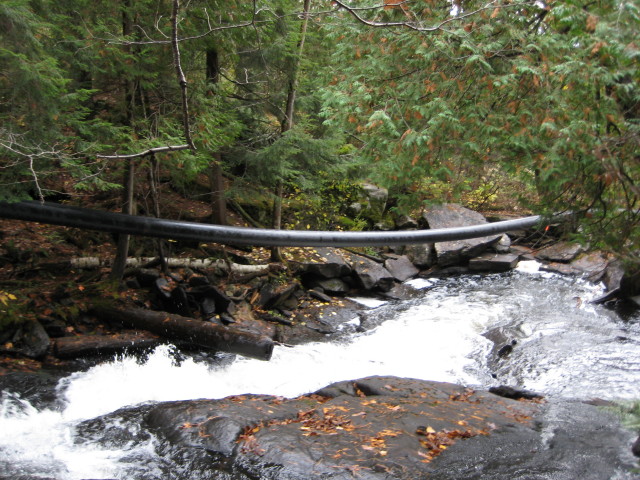

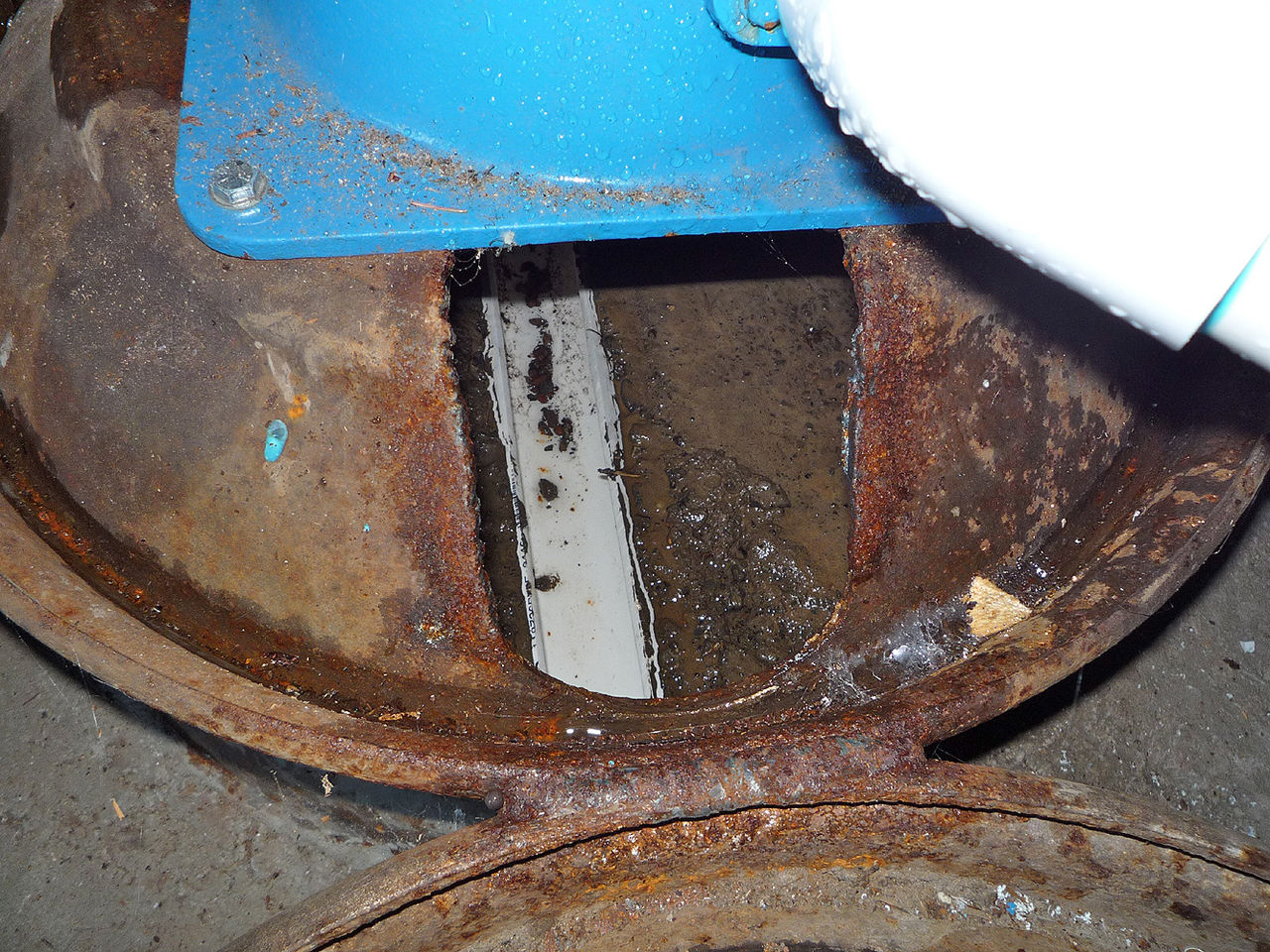

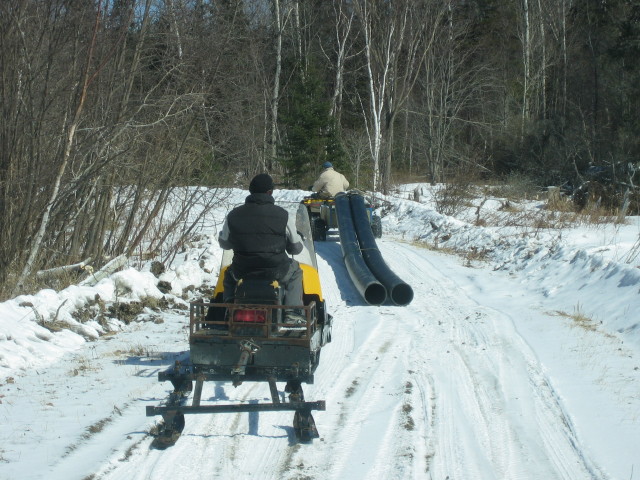

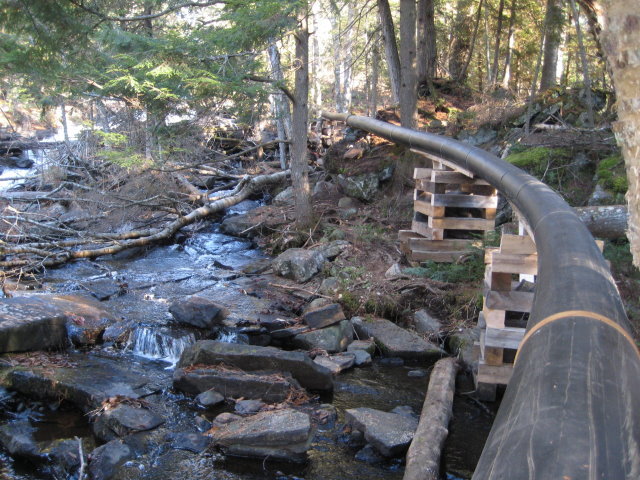

The Algonquin Eco-Lodge Micro-Hydro Generator is now running!!
The Eco-Lodge is set back in the Algonquin forest approximately 3 km from the road, and therefore too far away to be connected to the «hydro grid» (even if we wanted to). As an alternative we have been using propane lanterns for lighting, firewood to heat the the main building, and the fridge and hot water heater run on propane. Carting in over 1 ton (in 100 lb tanks) of propane 3 times a year, and chopping and moving enough firewood to run the lodge for a year is very labour intensive and time consuming.

We are, however, lucky enough to have a beautiful, and powerful, waterfall virtually at our doorstep. This is a perfect location for a micro-hydro generator to create our own electricity. The turbines were designed in British Columbia, the pipes were manufactured in Ontario, and a local electrician provided all the electrical components. The powerhouse was built from timber planed in a local sawmill. Many thanks to the local contractors, friends, staff, and volunteers who have given many hours of their time to work on the project.

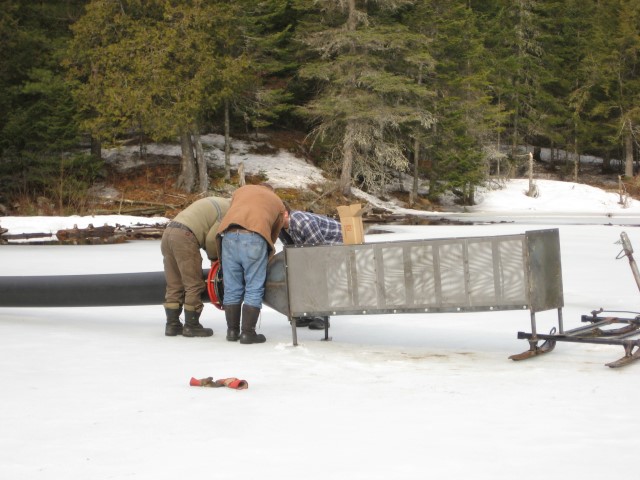

The turbines produce approximately 11 kw of continuous power in the winter (when the water levels are highest) and 4 kw in the summer. This is more than sufficient to operate water pumps, the fridge and freezer, hot water tanks, all lighting, and even some electric heating in the winter. And, what makes us most proud, it reduces our greenhouse gas emissions by over 7 tons each year!

As far as we know, we are the first and only lodge in southern Ontario utilizing micro-hydro technology.





PRO-ведро :):

Bucket-borne hydroelectric generator








Pico Hydroelectric Generator in 5 gallon bucket developed by Sam Redfield and tested at La Florida in Guatemala. The generator is meant to be a very small, cheap, low impact generator designed to be used with existing gravity fed irrigation, fresh water, or waste water systems.

http://blog.makezine.com/archive/2008/06/bucketborne_hydroelectric.html

#86MDM 18-03-2010 07:06

Domestic Hydro Generator (6KW)
Model NO.: DYHG-6000W
Standard: CE Standard
Productivity: 500 sets/month
Trademark: Dayue

Model — DYHG6000
Rated Power — 6000
Output Single phase — 230V AC
Rated speed — 1500rpm
Head ( min ) 18 m
Head ( max )200 m
Flow 0.018 -0.030 m 3
Generator type — Permanent magnet alternator
Regulator included — Yes
Diversion load included — Yes
Water to Wire Efficiency: Max 65% Min 45%
Dimension 110Ч74Ч87 cm
Weight 260 kgs

http://cnwxdy.en.made-in-china.com/product/MbREfzFYhiVK/China-Domestic-Hydro-Generator-6KW-.html

#87MDM 18-03-2010 07:14

Domestic Hydro Generator (3KW)
Model NO.: DYHG-3000W
Standard: CE Standard
Productivity: 500 sets/month
Trademark: Dayue

Model — DYHG3000
Rated Power — 3000
Output — Single phase 230V AC
Rated speed — 1500rpm
Head ( min ) — 18 m
Head ( max ) -200 m
Flow 0.018-0.030 m3
Generator type — Permanent magnet alternator
Regulator included — Yes
Diversion load included — Yes
Water to Wire Efficiency: Max 65% Min 45%
Dimension — 87Ч58Ч58 cm
Weight 150kgs

http://cnwxdy.en.made-in-china.com/product/HMpEGSFcnlVX/China-Domestic-Hydro-Generator.html

#88MDM 18-03-2010 07:53

Sunami water turbines (Canada)
http://www.windturbine.ca/sunami.html
The Answer for creating usable power from your rivers and streams.
No batteries needed, no inverters, cheapest method of producing power
Available in sizes: 200 watt to 30 kilowatt.

Sunami water turbine Models:
SN 200 watt/SN 300 watt/SN 500 watt/SN 1500 watt/SN 6 kw

Low Head Axial hydro generator SNLT 300 watts — 1kw

Sunami water turbine Prices:
(Permanent magnets / AC output / asynchronous generator)
All prices are in Canadian dollars taxes and shipping are extra.
Model design Pricing
SN200 Inclined impulse 700
SN300 Inclined impulse 950
SN500 Inclined impulse 1500
SN1100 Inclined impulse 2200
SN1500 Inclined impulse 2800
SN3000 Inclined impulse 4500
SN6000 Inclined impulse 7500.
SN10kw Inclined impulse 12000.
SN15kw Inclined impulse 14000.
SN20kw Inclined impulse 18000.
SN30kw Inclined impulse 22000.
SNLT 300 Axial hydro 975.00
SNLT 500 Axial hydro 1500.00
SNLT 1kw Axial hydro 2200.00

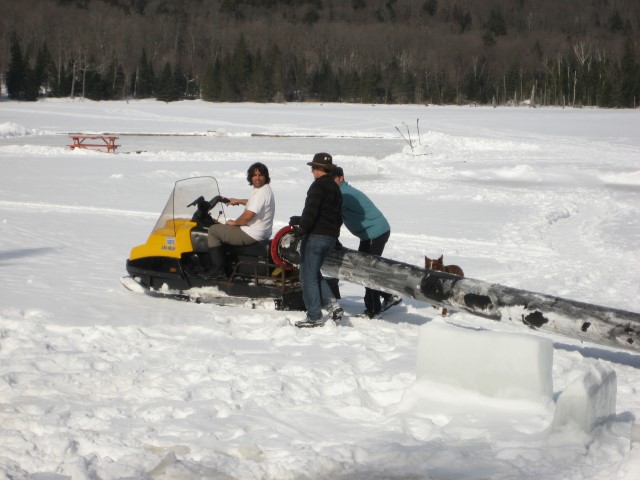

Pictures of installation on Vancouver Island BC Canada:





#89MDM 18-03-2010 10:52

quote:Originally posted by kotowsk:
на наших речках иногда лёд замерзает. вот утопленную бы сюда, опустил в прорубь и снимай с провода.

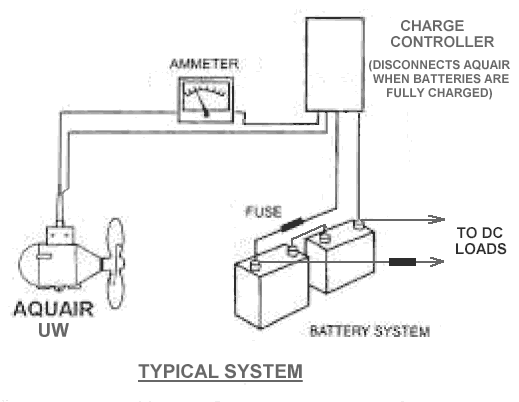

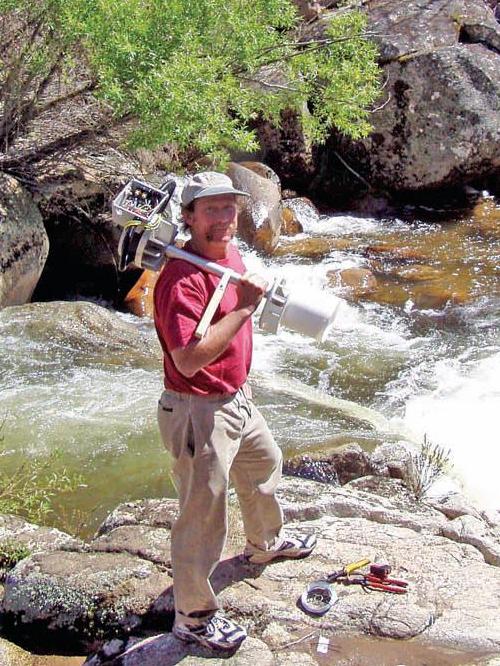

Aquair UW Submersible Generator
12Vdc, 24Vdc or 48Vdc approx 100 watts maximum
http://nooutage.com/aquair-uw.htm
Price $US — $1,251.00

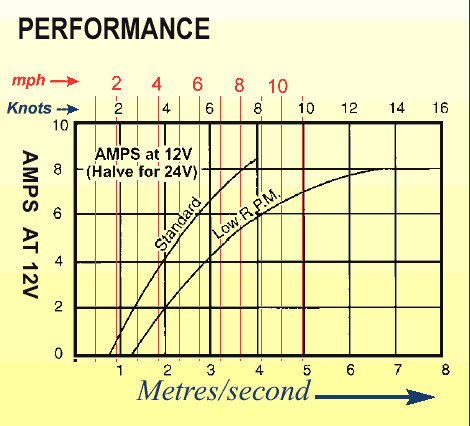

When mounted in a stream flowing 9 mph, it charges a 12 volt battery at 8 amps, or 2.4 kilowatt hours per day. It can produce 1.5 kilowatt hours per day in a stream moving 6 mph. Three models are available—one for 12VDC, one for 24VDC, and one for 48Vdc systems.

краткое описание — http://nooutage.com/pdf/aquairUW.pdf

мануал — http://nooutage.com/pdf/AQUAIRUW_100_manual_rev_Feb_2007.pdf
